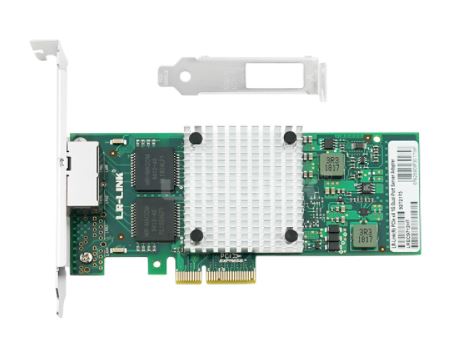

LREC9712HT

• Data rate supported per port: 10/100/1000 Mbps
• Bus type: PCI Express- 2.1 (5 GT/s))
• Bus width: 4-lane PCI Express; operable in x4, x8 and x16 slots
• Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
• Controller-processor: Intel Ethernet Controller I350
• Power consumption (typical): 6.0 W
• Storage temperature: -40 to 70 Centigrade
• Operating temperature :0 to 55 Centigrade
• Storage humidity: 90% non-condensing relative humidity at 35 Centigrade
• IEEE- 802.3 auto-negotiation
• 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
• Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex
• IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
• Automatic cross-over detection function (MDI/MDI-X)
• IEEE 1588 protocol and 802.1AS implementation
